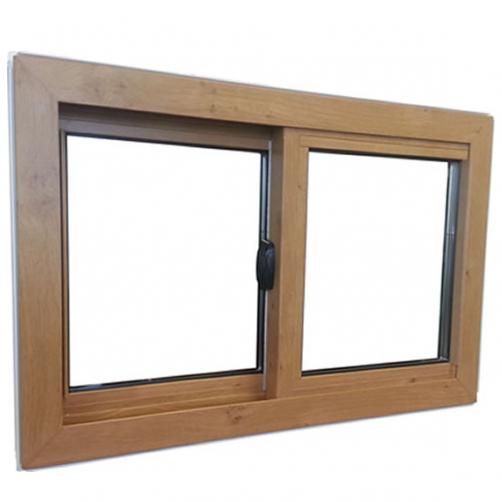

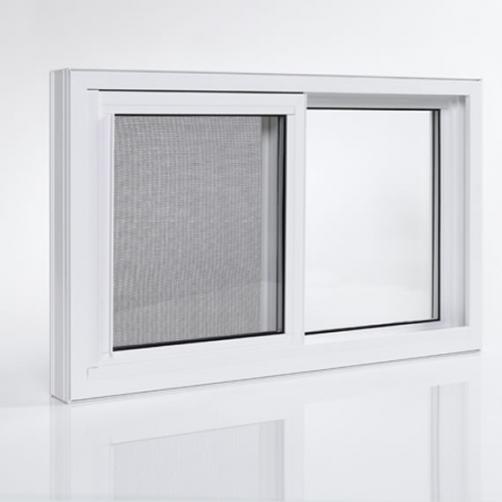

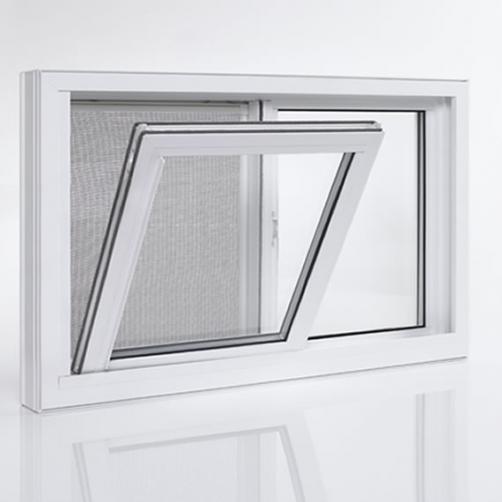

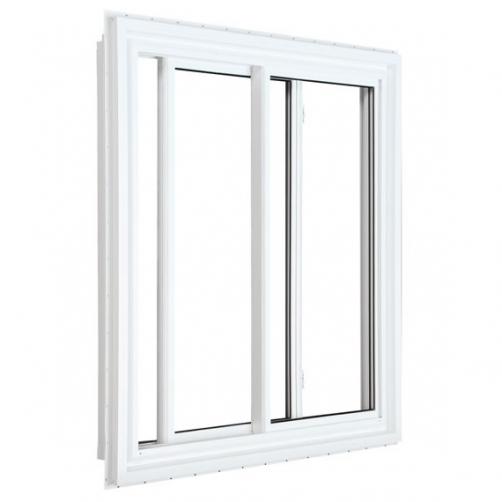

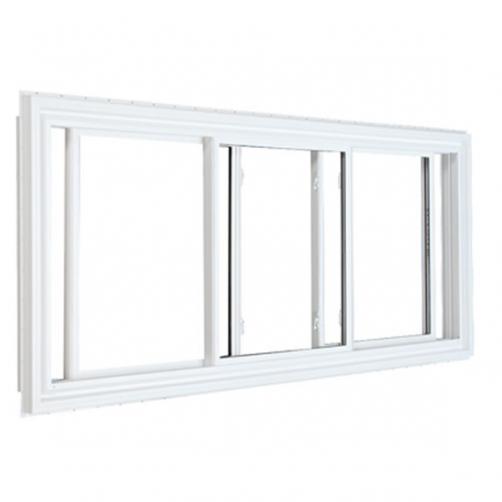

Effortless operation in two, or three, light configuration. Lift out sash makes cleaning a breeze.
Fill out my online form.
Multiple chambers increse strength and energy performance whille allowing efficient water drainage from the pocket sill. 1" oa. dual and triple pane insulated glass options and Fliplock positive action locks for security.
| Dual Pane Lo-E 180 |
Dual Pane Lo-E 272 |
Dual Pane Lo-E 366 |
Triple Pane Lo-E 272 |
Triple Pane Double Lo-E 272 |
|
| U-Factor | 0.30 | 0.29 | 0.29 | 0.26 | 0.22 |
| SHGC | 0.50 | 0.32 | 0.21 | 0.30 | 0.27 |
| VT | 0.61 | 0.55 | 0.50 | 0.51 | 0.44 |
| Condensation Resistance |
57 | 58 | 58 | 64 | 68 |
| AI | 0.04 cfm/ft2 | ||||
| Water Resistance |
9.19 psf | ||||
| Design Pressure |
+/- 60.15 psf | ||||
| Frame | Rehau uPVC |
| Frame Size | 3-1/4 |
| Exterior Colors | Almond, Black, Brick Red, Bronze, Brown, Clay, Dakota Sand, Forest Green, Gray, Mocha, White |
| Interior Colors | Almond, Black, Clay, Dark Woodgrain, Heartwood, Irish Oak, Maple, White |
| Grille Colors | All interior and exterior colors available and brass |
| Grille Type | Flat, Contour, Slimline |
| Grille Pattern | Colonial, Prairie, Farmhouse, Suspended |
| Brickmold | Standard, Retro, Wide |
| Glass Strength | Annealed, Tempered |
| Glazing | Interior |
| Glazing Type | Dual LoE 180/Argon,Dual LoE 272/Argon, Dual LoE 366/Argon, Triple LoE 272/Argon, Triple LoE 366/Argon, Triple Double LoE 272/Argon, Insulated Clear |
| IG Thickness | 1" oa. dual and triple pane |
| Angle of Deflection | n/a |
| Spacer | Endur |
| Interior Returns | Jamb, Drywall |
| Extension Jamb Loose | Almond (8"), Dark Woodgrain (8"), Heartwood (8"), Irish Oak (8"), Maple (8"), White (4", 6", 8") |
| Extension Jam Applied | Almond, Dark Woodgrain, Heartwood, Irish Oak, Maple, White |
| Maximum Frame Width | 76 |
| Minimum Frame Width | 22 |
| Maximum Frame Height | 66 |
| Minimum Frame Height | 12 |
